17-4 PH

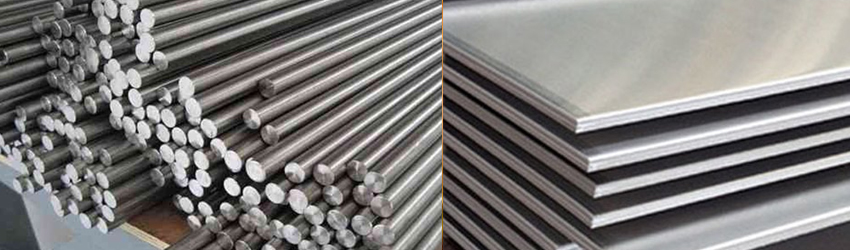

17-4 PH Stainless Steel Rods Manufacturers, 17-4 PH Stainless Steel Sheet Exporters, 17-4 PH Stainless Steel Round Bars, 17-4 PH Stainless Steel Flat Bars Suppliers in India.
Mahendra Metals & Tubes Company is a skilled manufacturer & supplier for high quality of 17-4 PH Bars, which is a precipitation hardening martensitic stainless steel. Typical usage of 17-4 PH Round Bars is seen in applications requiring high strength and a modest level of corrosion resistance. These 17-4 PH Flat Bars of Mahendra Metals & Tubes Company are characterized by very good machinability, which further has high hardness and high wear resistance after hardening. Strength and toughness desired can be manipulated by temperate range in the heat treatment process.
These bars have won the acclamation of different customers for their durable finish standards, dimensional accuracy and longer service life characteristics. These 17-4 PH Sheets of Mahendra Metals & Tubes Company has reduced carbon content, where the lower carbon content will help improve corrosion resistance after welding, and minimise carbide precipitation during the welding operation. It is used in applications requiring better corrosion resistance and transverse properties compared to other similar martensitic grades.
17-4 PH Plates of Mahendra Metals & Tubes Company is a nitrogen-alloyed and austenitic stainless steel with high corrosion resistance and micro-cleanliness. These are delivered with peel turned, burnished or rough machined surface, depending on size, which further can be supplied in random lengths or cut into fixed lengths. Mahendra Metals & Tubes Company has earned a reputation for the finest quality and superior polish of these 17-4 PH Stainless Steel Hex Bars. Every single finished piece that leaves the premises is subjected to rigorous testing and inspection, thus ensuring a near-zero-defect record.
UNS S17400 17-4 PH Stainless Steel Plates Distributor, Stainless Steel S17400 Round Rods, Stainless Steel Hex Bars, 17-4 PH Stainless Steel Strip Dealers in India.
17-4 PH Stainless Steel Alloy Specification
| Grade | UNS S17400 / AMS 5604 |
| standard | ASTM A693 / ASME SA693 |
| WNR | 1.4542 |
| Sheet Size | 0.029" - 0.130" |
| Plate Size | 0.1875" - 2.500" |
Chemical Composition for 17-4 PH Stainless Steel
| Element | 17-4PH |
| Carbon | 0.07 |
| Chromium | 15.0-17.5 |
| Nickel | 3.0-5.0 |
| Copper | 3.0-5.0 |
| Manganese | 1.00 |
| Silicon | 1.00 |
| Phosphorus | 0.040 |
| Sulfur | 0.030 |
| Columbium + Tantalum | 0.15-0.45 |
Mechanical Properties for 17-4 PH UNS S17400 Stainless Steel
| Property | 17-4PH |
| Yield Strength, min. (ksi) | - |
| Tensile Strength, min. (ksi) | - |
| Elongation, min. (%) | - |
| Hardness, max. (Rb) | 38 |
Physical Properties for 17-4 PH AMS 5604 Stainless Steel
| Property | 17-4 PH |
| Density, lb/in3 | 0.280 |
| Modulus of Elasticity, psi | 28.5 x 106 |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 6.0 x 10-6 |
| Thermal Conductivity, Btu/ft hr ˚F | 10.6 |
| Specific Heat, Btu/lb ˚F | 0.11 |
| Electrical Resistivity, Microohm-in | 38.6 |
